MAXIMIZE SWEETNESS AND TDS IN EVERY EXTRACTION

While supplies last, add a CEADO Hoop Coffee Brewer of your choice when you order any CEADO Electric Coffee Grinder and receive a discount for the Hoop, automatically applied in your shopping cart.

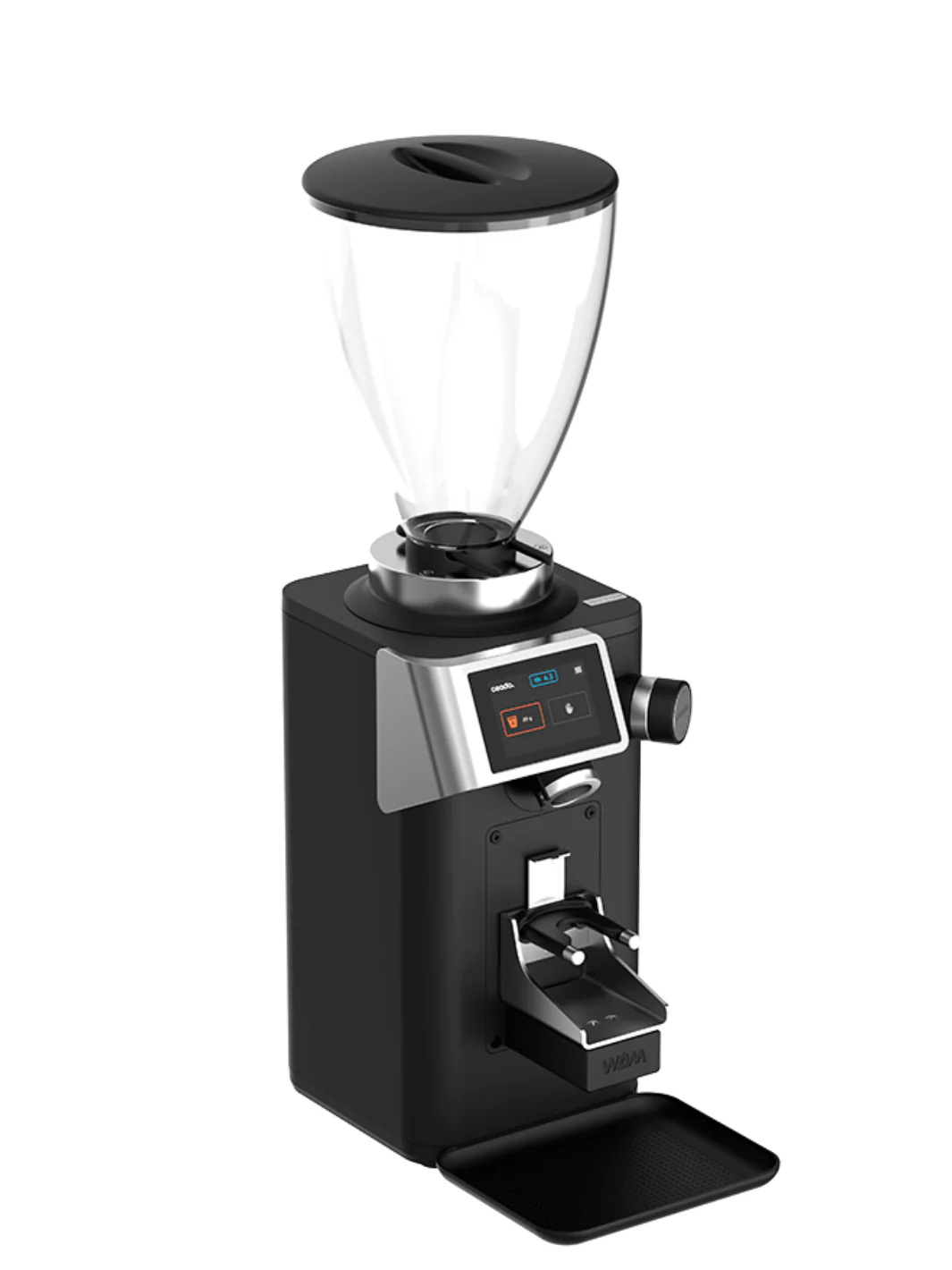

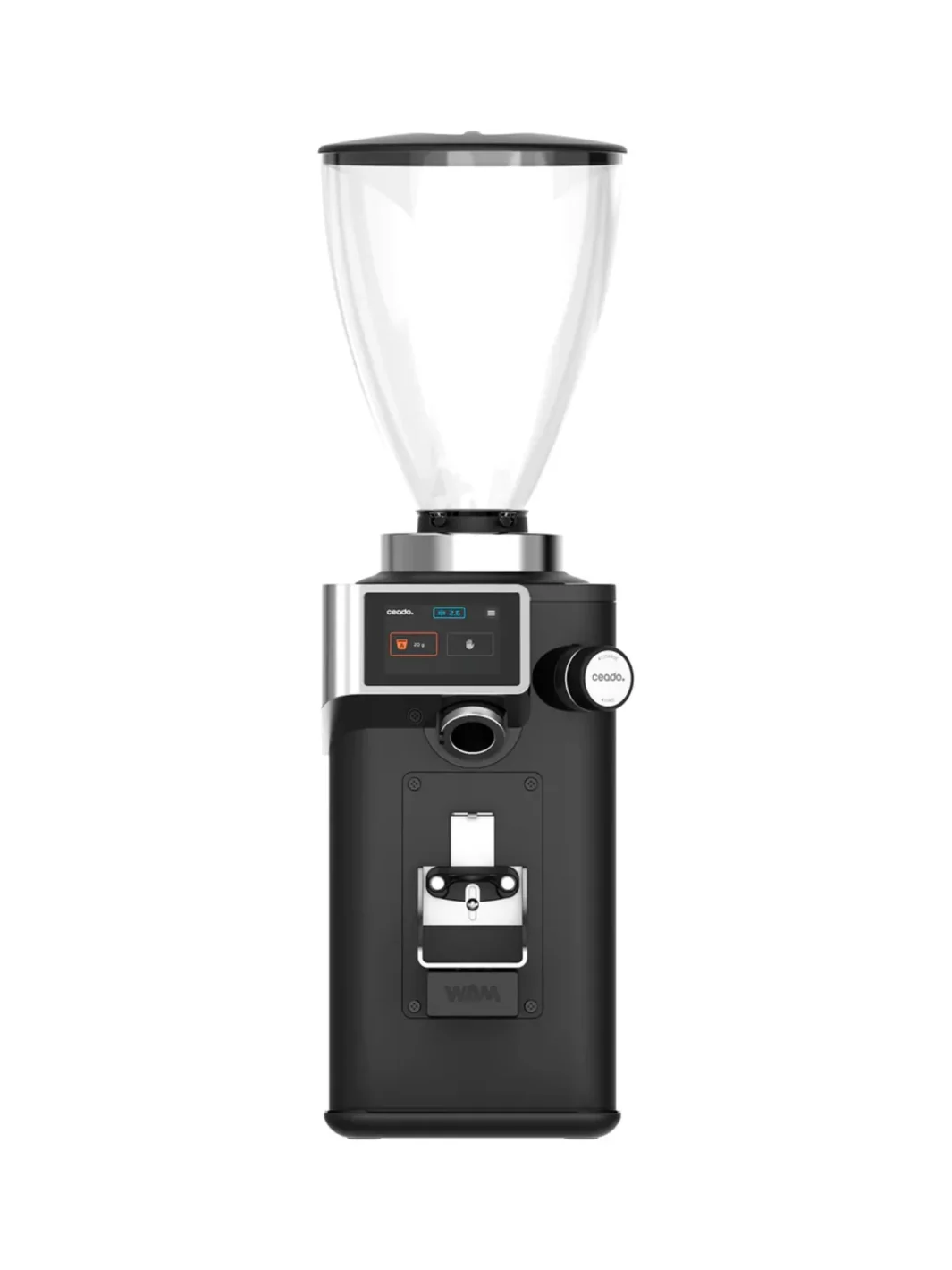

The Ceado Rev Titan is the ideal espresso grinder for high-volume environments, delivering an enhanced body and perceptible flavours even in milk-based drinks. Perfect for busy cafés seeking a fast, dependable, and accessible grinder without compromising on quality.

With temperature-stabilizing features, grind-by-weight precision, and ⌀83mm Ceado Iron Candy K110 flat steel burrs with advanced nano coating, the Rev Titan Espresso Grinder excels at fast, consistent extraction and well-rounded flavours.

⌀83mm Iron Candy K110 Flat Steel Burrs (with advanced nano coating)
At Ceado, all burr sets are designed and manufactured in-house, where "flavour takes shape" and every detail is tracked to ensure perfect synchronization between burr and grinder.
The Rev Titan's ⌀83mm K110 flat steel burrs with advanced nano coating, enhances durability and increases surface friction, designed to actively influence particle distribution.
With advanced geometry, a three-stage cutting profile and a high number of low-angle finishing teeth, these burrs are engineered to achieve a more uniform particle size distribution and reduce the distance between modal peaks. The result is more efficient extraction, higher TDS, and a cup with fuller body, roundness, and enhanced sweetness. Iron Candy burrs are optimized to maximize sweetness and TDS in every extraction and have a lifespan up to 1000kg, depending on coffee and roast profile.

Weight Adjustment Module (WAM)
When maintaining your espresso recipe, the fastest way to ensure consistent results is to grind by weight, eliminating the need to manually weigh the portafilter before each shot. Not only does this free up the barista's hands; it significantly expedites your workflow.
The Rev Titan features an easily interchangeable Weight Adjustment Module (WAM). If you'd prefer to use the Portafilter Activation Module (sold separately) for time-based dosing, it can be mounted in under two minutes, even post-grinder installation.

Steady Lock System
The Rev Titan comes equipped with Ceado's Steady Lock System. This essential feature counteracts the negative effects of heat expansion, ensuring that a precise distance is always maintained between the burrs.
Even at heavy volumes, the Rev Titan is built to deliver a consistent particle size and flavour profile, eliminating the need for calibration halfway through the day (and saving coffee in the process).

Grounds Temperature Management
Because a stable and low grinding temperature is key for consistent flavour extraction, the Rev Titan comes equipped with the following features to regulate heat buildup.
- A heat sink around the burrs to constantly remove large amounts of heat.
- A shaft that separates the burrs from the motor to prevent heat transmission.
- Ample insulation to prevent heat transmission through the shaft.
- Active internal airflow management to support temperature stability at any pace.
Noise Reduction
The Rev Titan Espresso Grinder is designed to provide a quiet, peaceful café ambience, with special features in place to prevent the transmission of vibrations. These include:
- A 2.5kg (88.18oz) grind chamber for better noise insulation.
- Rubber rings to reduce noise propagation.
- A motor that is separated from the burrs, and mounted on a suspension system, to prevent the transmission of vibrations.
Advanced Leveling Intelligent Grinding Nexus (ALIGN)
Never feel lost when it comes to your espresso grind setting. The Rev Titan pairs high-precision stepless adjustment with a large, easy-to-read digital display, allowing you to confidently monitor your grind setting while making micro-adjustments in one, swift move. Perfect for multitasking.

Easy-to-Clean Design
The top of the grind chamber can be removed with only three screws, making the Rev Titan resoundingly easy to clean, inspect, and maintain. After reassembly, no grind adjustment is necessary.
With a maintenance process that is exceptional in its simplicity, you can avoid any margin of error or unnecessary down time. More convenient features include:
- A removable air filter to prevent dust and dirt from entering the inner parts of the grinder, with a cleaning reminder that periodically appears when maintenance is necessary.
- A removable exit chute, loosened via a safety screw along with the safety metal flap for cleaning. Four guides assist you in placing it back, eliminating any chance of error.
User Interface With Technology Made in Italy
The user interface of the Rev Titan Espresso Grinder is state-of-the-art, ensuring intuitive use for every feature and customizable dose settings. It also includes a programmable air flow, maintenance alerts, five grinding activation modes, and a comprehensive digital menu that places you in control.

Ceado is an internationally trusted name in commercial and professional coffee grinders, offering a wide range of machines designed to meet the needs of exacting enthusiasts and specialty coffee shops. If you are unsure of which Ceado grinder will be best for your workflow, use our Ceado Coffee Grinder blog.
- ⌀83mm (⌀3.3in) Iron Candy K110 Flat Steel Burr Set with advanced nano coating
- Hopper Capacity: ~1600g (~56.44oz)
- Dimensions: W200mm x L270mm x H630mm (W7.87in x L10.63in x H24.8in)
- Voltage: 110-120V 60Hz/6A
- Power: 740W
- Speed (50/60Hz): 1480/1700RPM
- Average output (g/s) (calculated at standard Italian Espresso Consistency): 5 (50hz) / 6 (60Hz)
- Dose Setting: Digital with grind reference on display
- Display: Multifunction Touch
- Net Weight: 17000g (599.66oz)
- Gross weight: 18800g (663.15oz)
- Noise: 67dB
- Made in Italy
Use to professionally and precisely grind coffee.

CEADO Rev Titan Espresso Grinder (120V) (⌀83mm) - User Manual

CEADO Rev Titan Espresso Grinder (120V) (⌀83mm) - Product Leaflet
